FDR D-EVO II C35

D-EVO II FujiFilm C35 CsI – The endless pursuit of high image quality

The new FujiFilm C35 CsI detector is
the cutting edge of the FDR D-EVO II series.

Smart Function - Pursuing ease of use through versatile functionality

The C35 CsI Fujifilm DR detector technology has evolved to be smart.

  • Smart use of dose
  • Smart image processing
  • Smart construction – Withstands tough clinical environments
  • Smart Design – Easier for technologist handling and patient positioning.
  • Smart Function – Easy pick up of the detector by its rounded form, LED indicators
  • Smart Protection – Increased durability, Water Resistance
  • Smart Mobility – Ultra light weight, Image storage by internal panel memory
  • Smart Quality – Higher DQE by ISS CsI and noise reduction circuit
Cassette size detector with ISS (Irradiation Side Sampling system)
Scintillator CsI (Cesium iodide)
Detector external size 460 384 15mm (Approx.) [18 15 0.6]
Weight Approx. 2.6kg [5.7lbs.] (including battery)
Pixel pitch 0.15mm
Pixels 2836 2336pixels
Wireless standard IEEE 802.11n (2.4GHz, W52 / W53 / W56 / W58)
Image preview Less than 2sec
Cycle time Less than 9sec (wired)
Less than 10sec (SmartSwitch)
Battery recharging time Approx. 3hours (with battery charger)
Approx. 4hours (with Docking Stand)
Battery performance Standby: Approx. 4hours
Sleep mode: Approx. 7h 30min
Extra sleep mode: Approx. 18h 30min

1. Fujifilm’s unique ISS technology provides high resolution images with low dose

With the CsI columnar crystal scintillator combined with the ISS system, we suppress light scattering and energy attenuation to be impossible with existing reading systems to create images with low dosages and high resolution. We have achieved a top world class 54% DQE (@ 1Lp/mm, 1mR), MTF 80% (@ 1Lp/mm, 1mR).

2. Fujifilm noise reduction circuit improves detector sensitivity in high absorption regions

The uniquely developed noise reduction circuit reduces noise in the image. It achieves 1.2 times of the DQE of existing systems (D-EVO plus C35i/s) with a 0.03 mR dose. In particular, granularity of low-concentration regions such as the heart and mediastinum is dramatically improved.

3. Innovative shell design

The easy-to-grasp shape allows for easy pick up even when placed flat, improving task efficiency.

4. Easy-to-see LED display

Equipped with LEDs at the center of each of the four sides of the detector that makes it easy to check the center position during imaging. Select from five colors (blue, pink, orange, lime-yellow, and purple) that make it easier to distinguish devices when using multiple detectors. In sleep mode, the side-center LEDs switch to a gentle flashing pattern that allows you to see the state of the detector at a glance. The back of the detector is equipped with an LED lamp that displays remaining battery status.

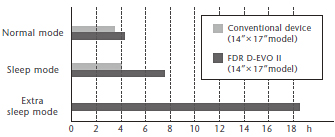

5. Maximum 18.5 hours of standby time with the new sleep function

The center LED on the side of the detector flashes slowly to indicate the status of the detector at a glance.

sleep mode comparison fujifilm vs conventional

6. IPX6 water resistant

Structured to prevent the infiltration of liquids, the device conforms to IPX6 for water resistance and can withstand splashes from any direction.

7. A frame structure that increases durability 310kg load capacity

The innovative SRM**frame realizes a lightweight design combined with a 310kg load capacity on all surfaces by reinforcing the frame internally with ribs. This also improves the flex resistance of the display detector.

8. Suitable for outdoor use with an expanded spectrum

Supports 2.4GHz and 5GHz (W52 / 53 / 56 / 58)***spectrum.

fujifilm panels suitable for outdoor use

9. Allows detector-only image storage

The detector itself can store up to 100 images in internal memory. This eliminates the work of carrying around multiple CR cassettes found in conventional systems. Furthermore, it allows you to perform rapid imaging in an emergency situation.
