1.6, 2.4 & 5kW Portable XRAY System

1.6, 2.4 & 5kW Portable XRAY System

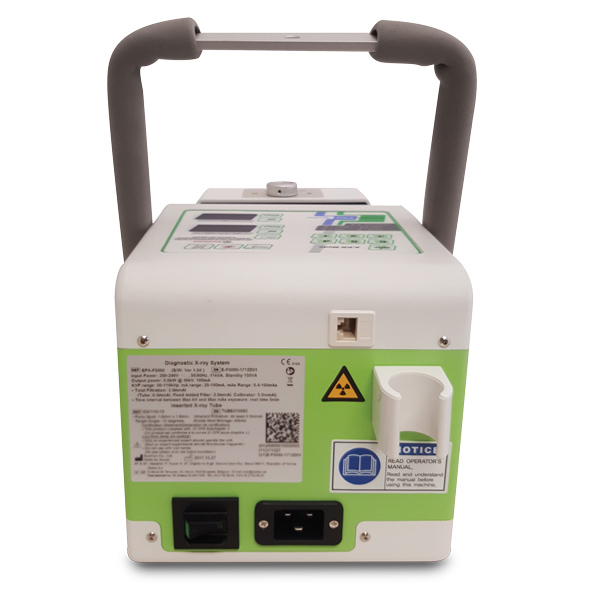

High frequency 5kW Portable XRAY System

The highest 5kW Portable XRAY available

– High Performance Portable X-ray system.
– Most compact size and lightest weight.
– Provides high resolution imaging at lower dosages.
– Durable design with solid body.

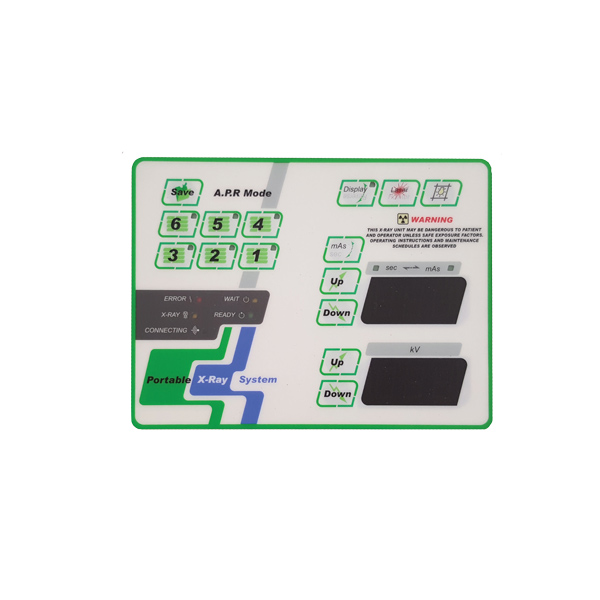

– Soft Touch Controls with Digital displays.
– Calibrated cassette size indicator dials
– Available with Inverted control panel for table use.
– Two stage dynamic, Auto line compensation.
– Easy access to DR systems.
– Dual Integrated Laser Pointer.
– Wireless/Wire PC interface(Option)

Also available in 1.6kW & 2.4kW.

EPX-F1600 EPX-F2400 EPX-F5000
Max Output Power 1.6kW 2.4kW 5kW
Generator Frequency 100kHz 70kHz 70kHz
kV Range 40~90kV 40~100kV 50~110kV
mA Range 12~30mA 16~40mA 20~100mA
mAs Range 0.4~100mAs 0.4~100mAs 0.4~100mAs
Focal Spot 1.2mm*1.2mm 1.2mm*1.2mm 1.8mm*1.8mm
Target Angle 19° 16° 15°
Anode Heat Storage 10kHU 50kHU 42kHU
Input Voltage 110V / 220V 110V / 220V 200V~240V
Phase / Frequency Single / 50~60Hz Single / 50~60Hz Single / 50~60Hz
Dimension(mm) 335*153*170 360*200*190 360*200*190
Packing Size(mm) 520*400*330 520*400*330 520*400*330
Net weight 6.8kG 11kG 12kG
G-weight 20kG 22kG 22kG
