FujiFilm FDR Smart 52kW 3 Phase XRAY Table

Fujifilm’s FDR Smart is the latest high-quality, cost effective x-ray system. Easily Installed in limited spaces and easy to use, this user friendly system will bring upon a smart workflow for you.

  • Floor Mounted Tube Stand — lightweight and ergonomically designed.
  • Table — Spectacular load bearing.
  • High frequency generator and X-ray tube — 3 types of generators (Capacitor, UPS, Line) can be selected to match your necessity. No power supply modicifaion is necessary for Capacitor and UPS type generat
FujiFilm FDR Smart 52kW 3 Phase XRAY Table has spectacular load bearing – Able to choose between 4-way floating table top(2,200 long × 750 mm wide) and 6-way elevating table (2,200 long × 810 mm wide). Both tables are able to bear 300 kg which makes it extremely flexile for patients of all shapes and sizes.

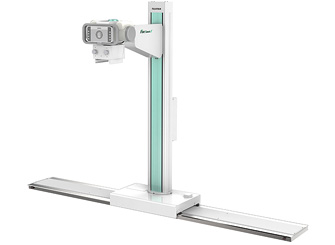

Floor Mounted Tube Stand – The ergonomically designed floor mounted tube stand provides the technologist with lighter and smoother movement for faster, more efficient workflow.
FDR Smart 6 Way Elevating Table with floor-mounted lightweight tubestand –  table dimensions 2,200 (W) x 810 (D) x 850 (H) mm, fixed grid, SID 100cm, 300kg maximum patient load with Centre indication transverse centre and height centre, lock (brake) EM lock, beam sensor on/off.



GXR Series 52kW, 3 phase powered x-ray generator, UHF, 40-125kV 1kV step, 10 to 640mA, 0,001 to 10 sec, 38 steps includes:

–          Remote diagnosis via internet to reduce service cost and time.

–          Easy parameter setting & Firmware upgrade.

–          Real time self-diagnosis, Error log & Statistical data display.

–          Tube anode HU display & protection.

–          Tube overload and housing overheat protection.

–          Rotor Brake Function: DC Brake, No anode rotation noise after exposure.

–          Generator has wheels to keep off the floor and for easy cleaning.

300,000 KHU Toshiba X-RayTube with a 0.6 / 1.2 mm Focal Spot Size and 12 deg target angle
Manual Collimator with electronic timer, single LED, laser line, tape measure and rotating flange.
