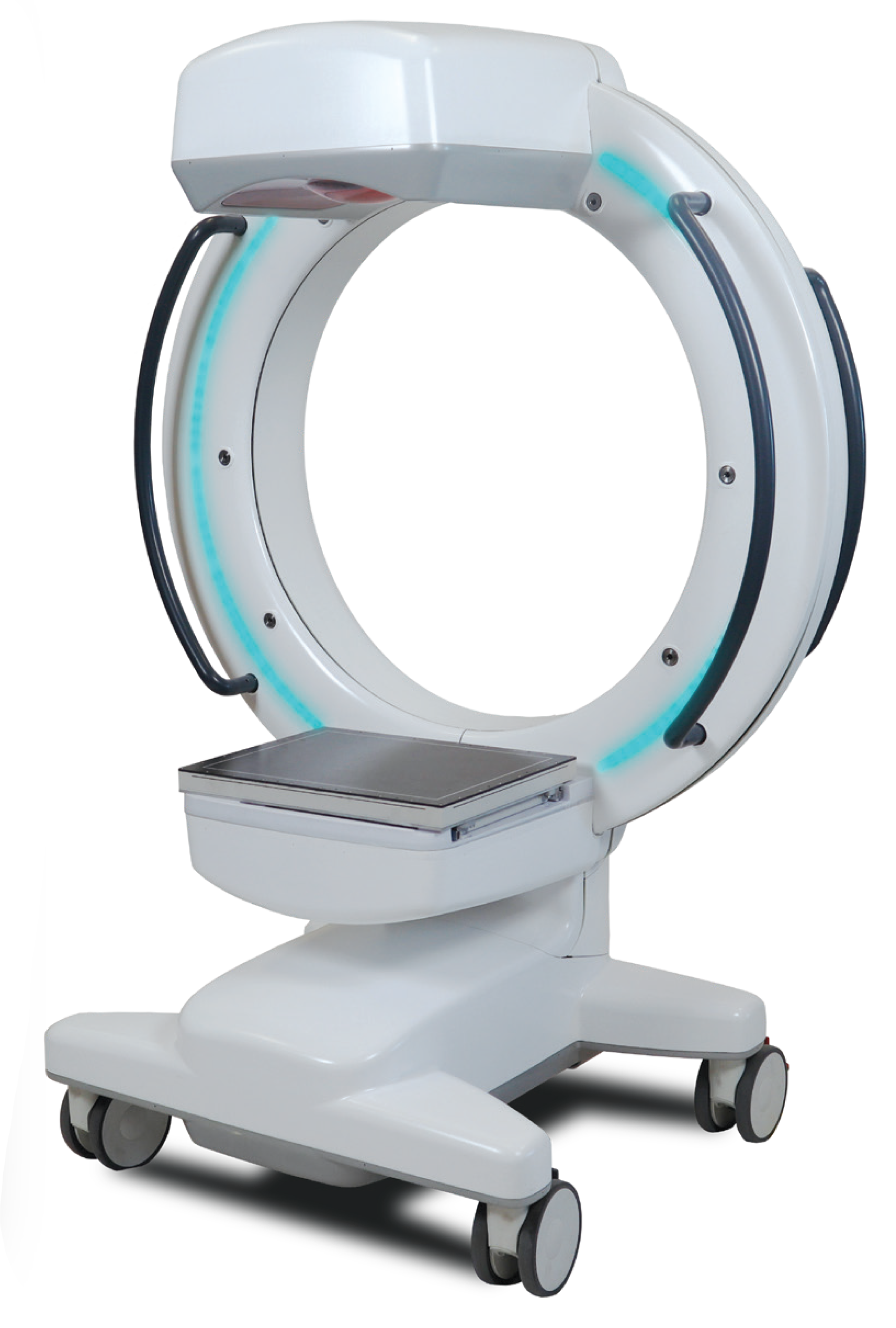

Portable CT for Veterinary Professionals
Make the transition from 2D to 3D imaging.
2D X-ray projections provide limited data. This 3D CT systems allow you to see the entirety of your patient’s anatomy from all angles, exposing pathologies that may be hidden in standard 2D X-rays.
Function
- Rolls through standard door
- Plugs into standard 20A outlet
- Zero-turn radius
- 20-second scans
| SPACE | |
| Dimensions (inches) | W 45.4 x L 29.2 x H 65.4 |
| Weight | ~500 lbs |
| Effective Bore Size | 31.5 in diameter |
| Gantry Rotation | 360 degrees |
| FIELD-OF-VIEW | |
| Soft Tissue 3D Imaging | 21cm x 13cm |
| Bone Anatomy 3D Imaging | 21cm x 13cm |
| IMAGING | |
| High-Resolution (in all planes) | 0.3mm |
| Ultra-High Resolution (Region of Interest Tool) | down to 70 microns (0.07mm) |
